Plastic and Steel Access Panels
Every access panel we make, in both materials, in sizes from 4" x 6" to 24" x 24".
Welded steel panels, a 20-gauge door in an 18-gauge frame, for hallways, garages and anywhere the door takes a knock. UV-stabilized plastic panels for bathrooms, laundries and under-sink access, where rust is the problem. Both are paintable and wallpaperable. Neither is fire-rated.
Panel sizes name the cut-out, not the outer frame. Check the Measurement Guide image on the product page before you cut.
![[2 Pack] 4" x 6" White Heavy-Duty Plastic Access Panel for Drywall: Premium Wall Hole Cover & Plumbing Panel](http://brycehardware.com/cdn/shop/files/APP0406_0609_Front_45_Degrees_x2_55bc0f8c-1212-4575-a879-c9adbaded59f.jpg?v=1729733664&width=700)
![[2 Pack] 8" x 8" White Heavy-Duty Plastic Access Panel for Drywall: Premium Wall Hole Cover & Plumbing Panel](http://brycehardware.com/cdn/shop/files/45DEGREE_APPSQUARE_x2_a147c927-754a-4704-9c9b-aea1a53f790c.jpg?v=1729734261&width=700)
How to fit an access panel.
Draw around the frame on the back of the panel, never the outer rim.
Trace the frame on the back, not the outer rim.
- 1Frame on the back
The part that goes into the wall. Hold the panel flat on the wall so this frame touches it, then draw around it. That line is your hole.
- 2Outer rim
Bigger than the hole. It stands off the wall while you trace, then covers the cut edge once the panel is in.
Wait until you have the panel in hand. Trace it, and never cut the hole to a number.
Level and outline
Hold the panel flat against the wall where you want it, with the frame on the back against the wall. Check it sits level, then draw around that back frame. That pencil line is your opening.
Cut the drywall
Cut along the line with a drywall saw. Stay on the line: a hole that comes out slightly tight is easy to ease open, one that comes out too big is not.
Secure and install
Push the panel into the hole. Plastic panels glue in with silicone or building adhesive; steel panels screw through the outer rim into the drywall. The rim covers the cut edge on all four sides, so a rough cut stays hidden.
Check it closes
The door should sit flush with nothing proud of the wall line.
Finish the rest of the room

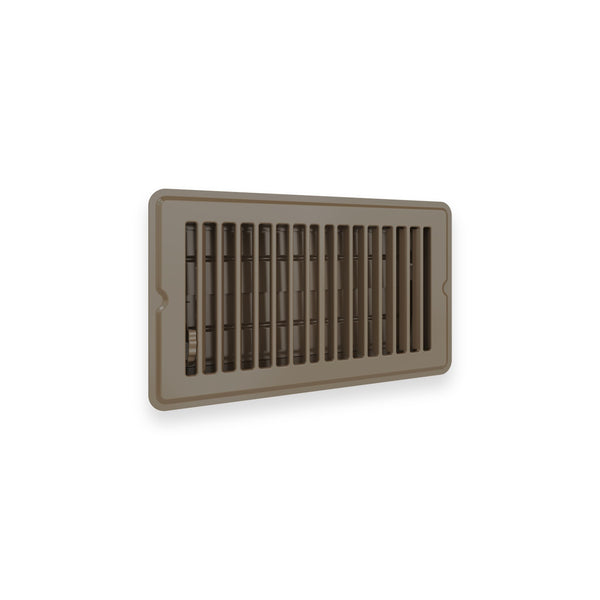

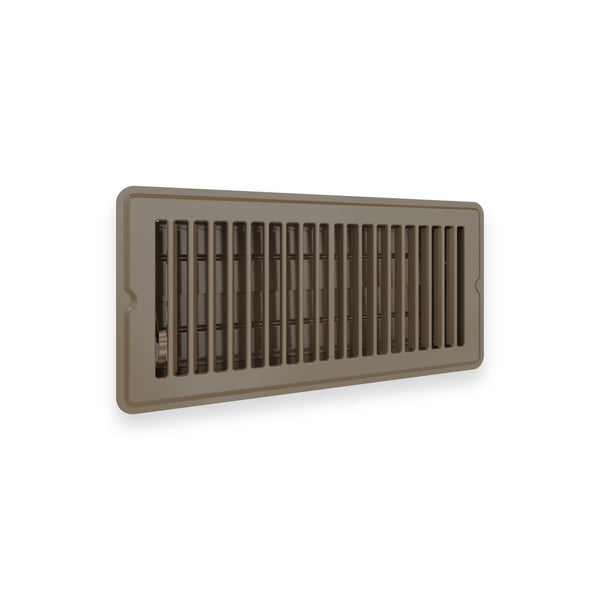

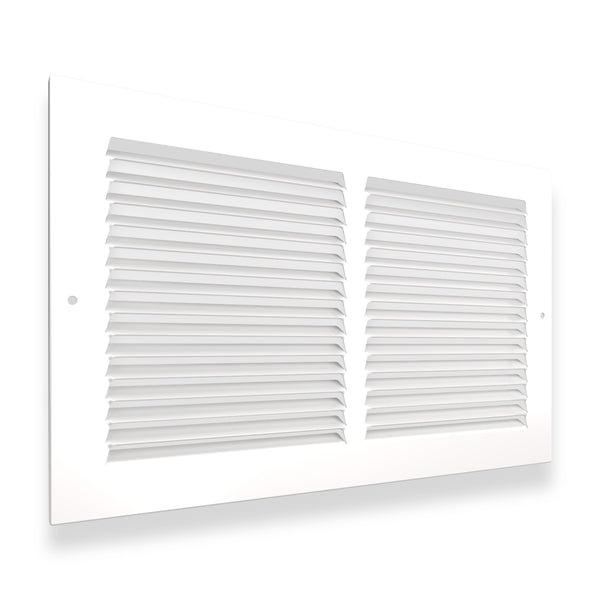

Vents, grilles and steel panels in white. Floor registers in brown. Plastic panels in UV-stabilized white.
